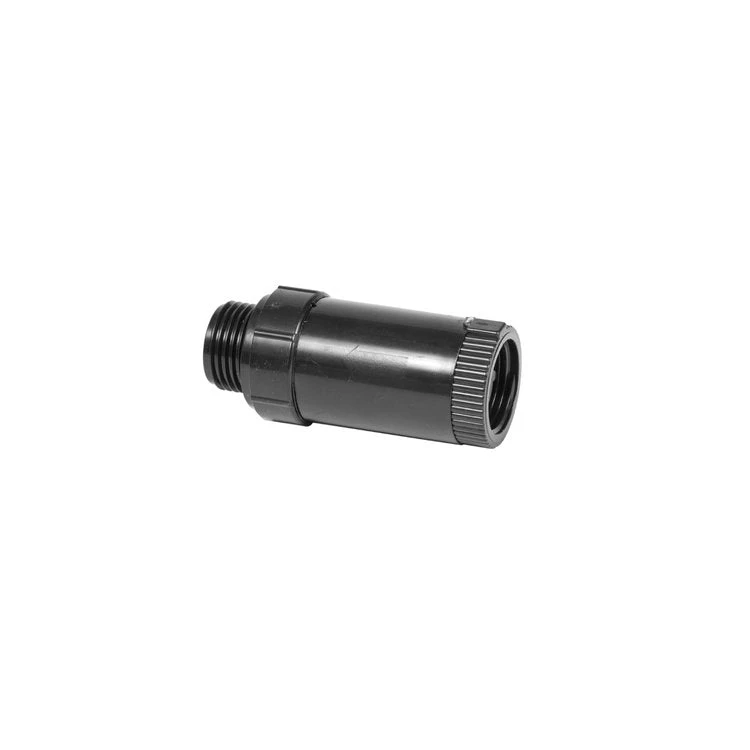

3/4″ Heavy Duty Preset Pressure Regulator 30psi Hose Thread FHT Inlet X MHT Outlet – DIG 18-130 PRESSURE REGULATORS

Features

• Exceptional control of outlet pressure
• Withstands severe water hammer
• Utilize a minimum of moving parts and a diaphragm design that regulates itself in reaction to overall system back pressure.
• Available with 3/4″ female or male outlet
• Engineered with extra thick industrial strength ABS plastic with all joints sonic welded into a tamper proof and impact resistant housing
• Install above or below grade and in downstream pressure

Specifications

• Flow rate from .5 to 12 GPM
• Pressure range: 20, 25, 30, 35 & 40 PSI
• Max. recommended flow rate: 12 GPM
• Maximum working pressure range: 150 PSI
• Materials:
  • Body: chemical resistant ABS plastic
  • Diaphragm: EPDM
  • Spring: stainless steel
• Inlet 3/4″ FIPT (standard)
• Outlet 3/4″ FIPT or 3/4″ MNPT
• Overall length 4.025″
• Outside diameter 1.845″
