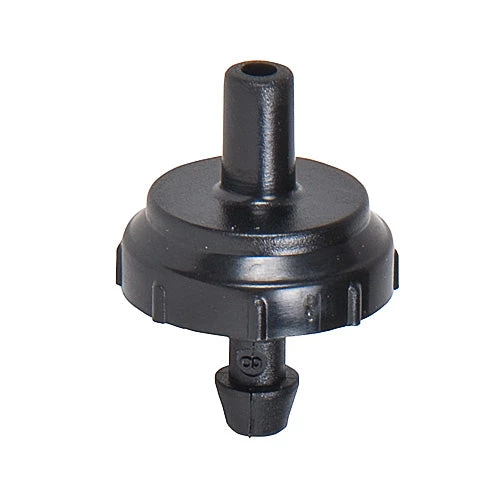

DIG (1 GPH) Single Outlet PC Drip Emitter With Barbed Inlet 06-014 (by The Unit) DRIP IRRIGATION

SOLD BY THE UNIT: QUANTITY = NUMBER OF UNITS

PC Drip Emitters

Features

• The labyrinth water passage with floating silicon diaphragm design provides a self-cleaning mechanism at the water outlet

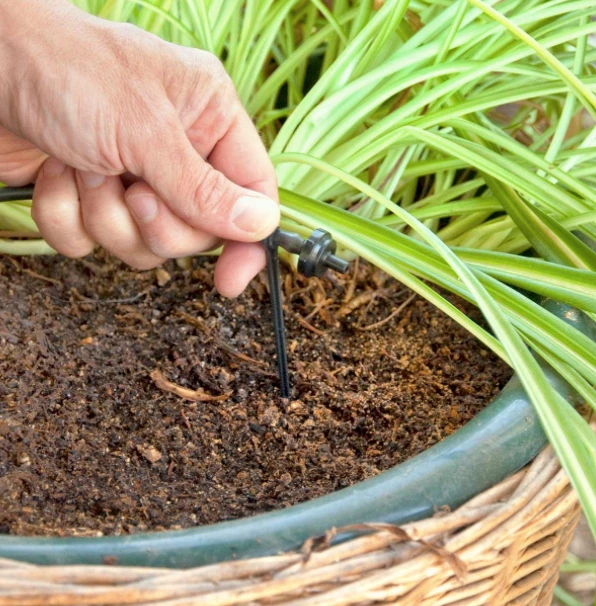

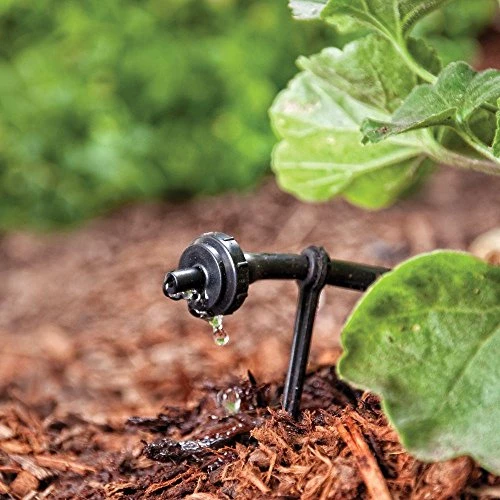

• Barbed inlet for installation into drip tubing or 1/4″ distribution tubing
• Male nipple outlet for a placement of multi outlet adapter or bug caps
• Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions

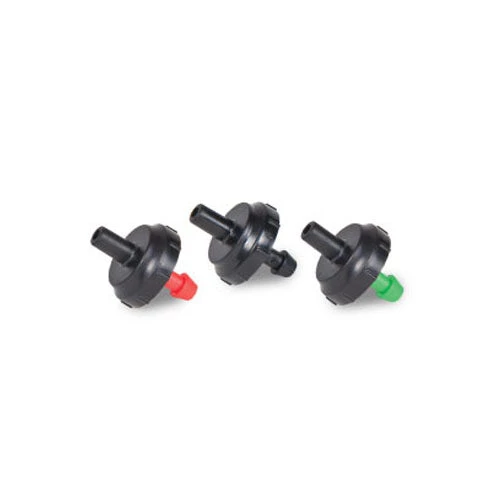

• Available in three color-coded flow rates for easy identification
• Pressure compensation enables the use of longer laterals with smaller diameter tubing.

Specifications

• Flow rates and color codes:
  • 1 GPH (4 L/H) color code – black
  • 2 GPH (8 L/H) color code – green
  • 4 GPH (12 L/H) color code – red
• Operating pressure: 10-45 PSI (.7-3.5 BAR)
• Inlet size: 1/4″ (4 mm) barb
• Outlet size: .2″ (5 mm) male nipple
• Materials:
  • Body and cover: High impact ABS
• Diaphragm: silicone
  • Filter requirement: minimum of 150 mesh

Dimensions

• .95″ W x 1″ H (24 mm W x 25 mm H)
