DIG 12 Plant Drip Irrigation Home Grow Kit – With 100ft 1/4 Inch Tubing, Emitters & Adjustable Manifold 0-20 GPH

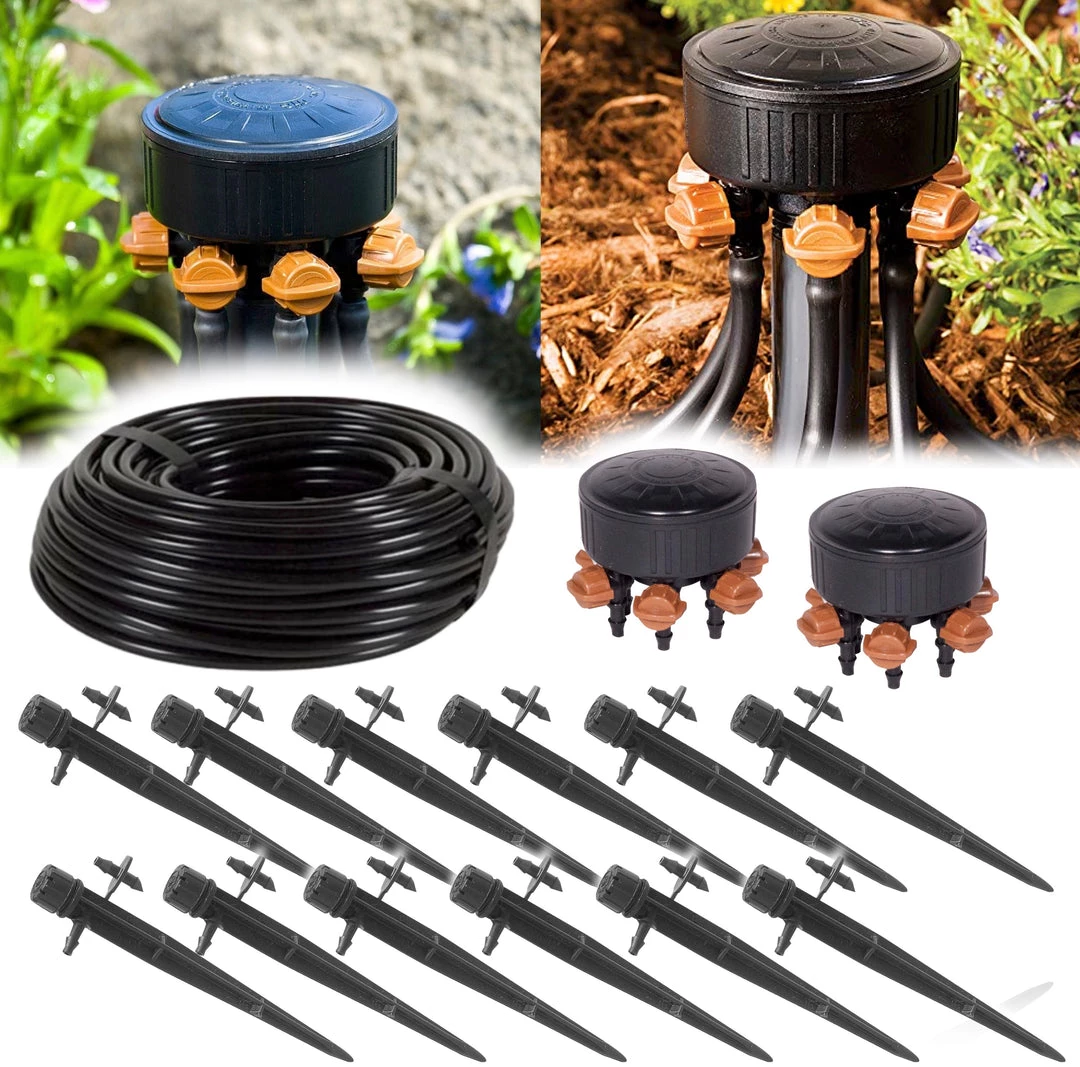

One Stop Outdoor USA Made – Home Grow Kit – Great Starter Hydroponics Drip Irrigation Kit – Includes Drip Tubing, Emitter Stakes, 6-Outlet Adjustable Manifold 0-20GPH 1/2″ FPT (6-Plant)——————————– —————————-

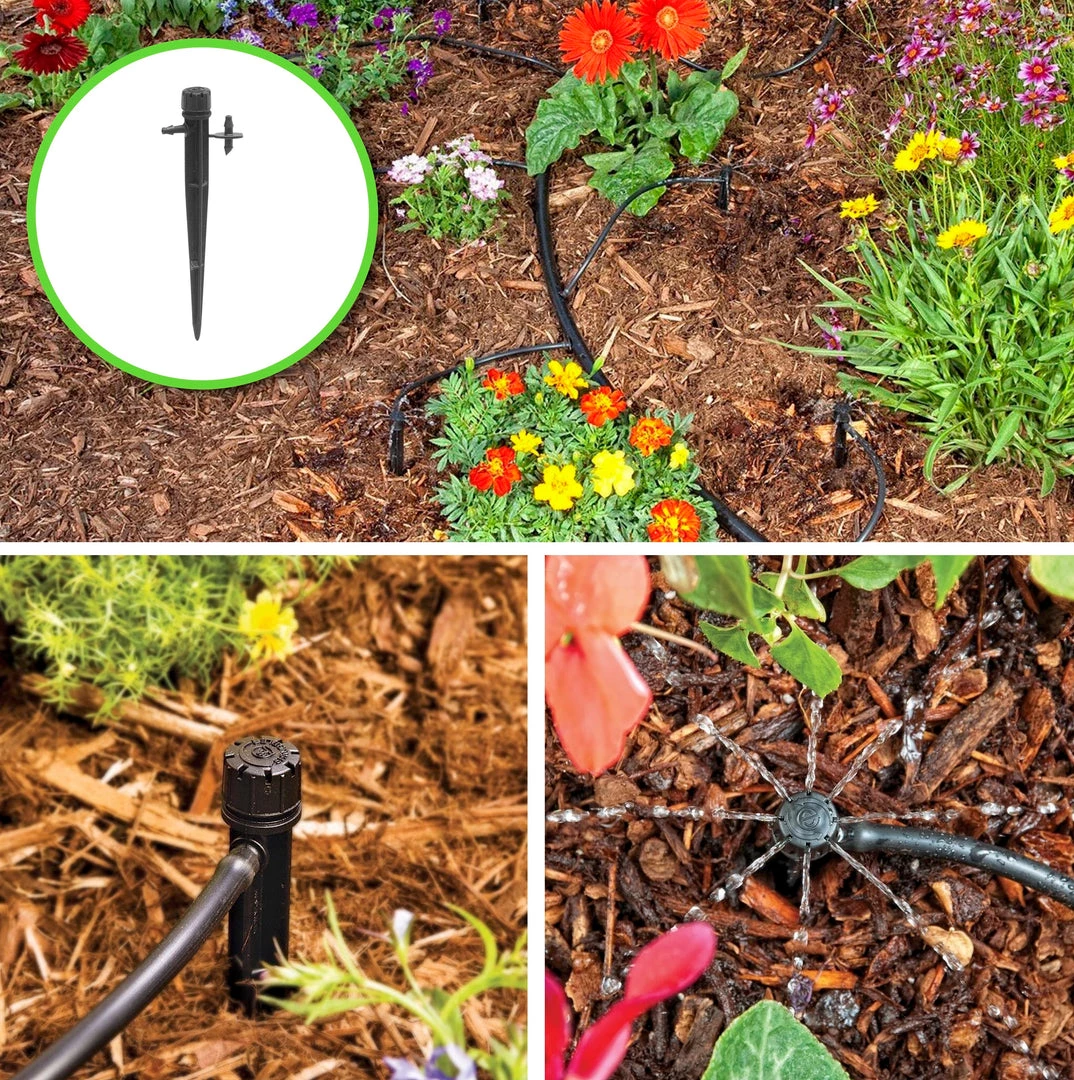

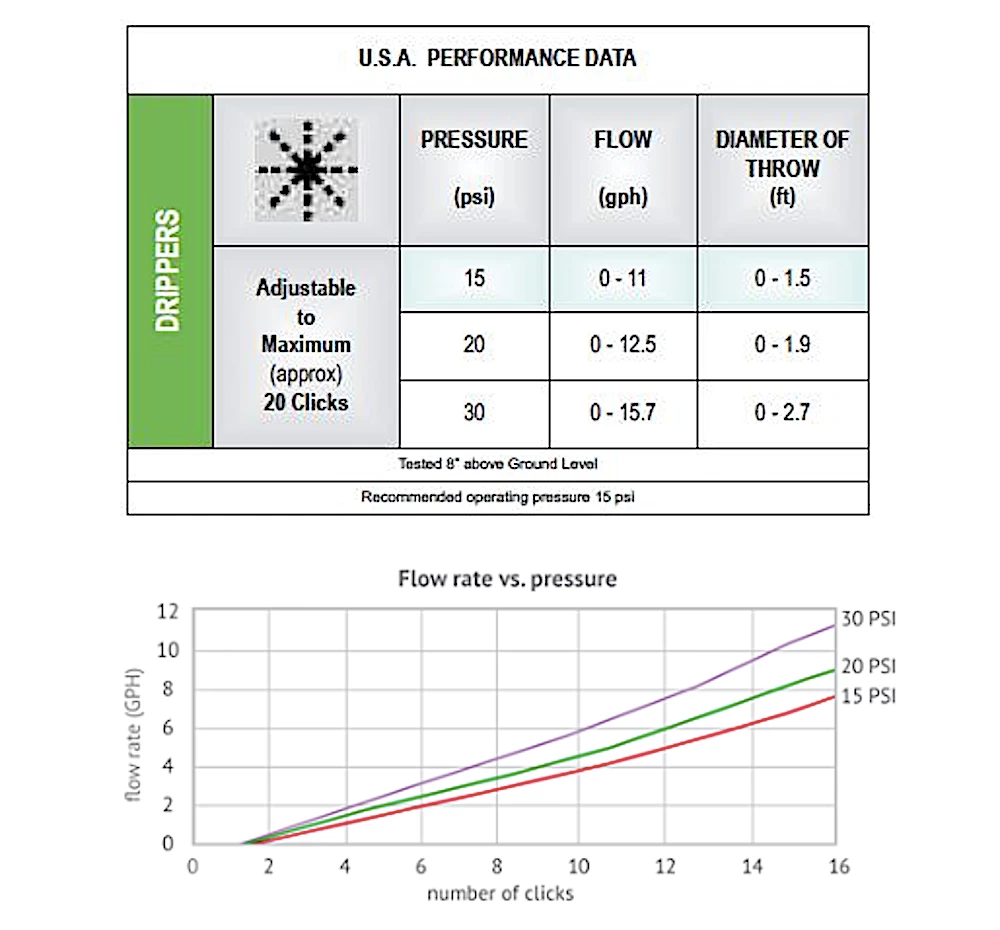

360° adjustable drip emitters are available with a barb or spike and have a flow dial enabling the flow to be adjustable between 0 to 14.1 GPH at 25 PSI. The drippers are designed to emit a very low-flow, gentle stream pattern with a diameter range of 0 to 2.3’ at 25 PSI.——————————–

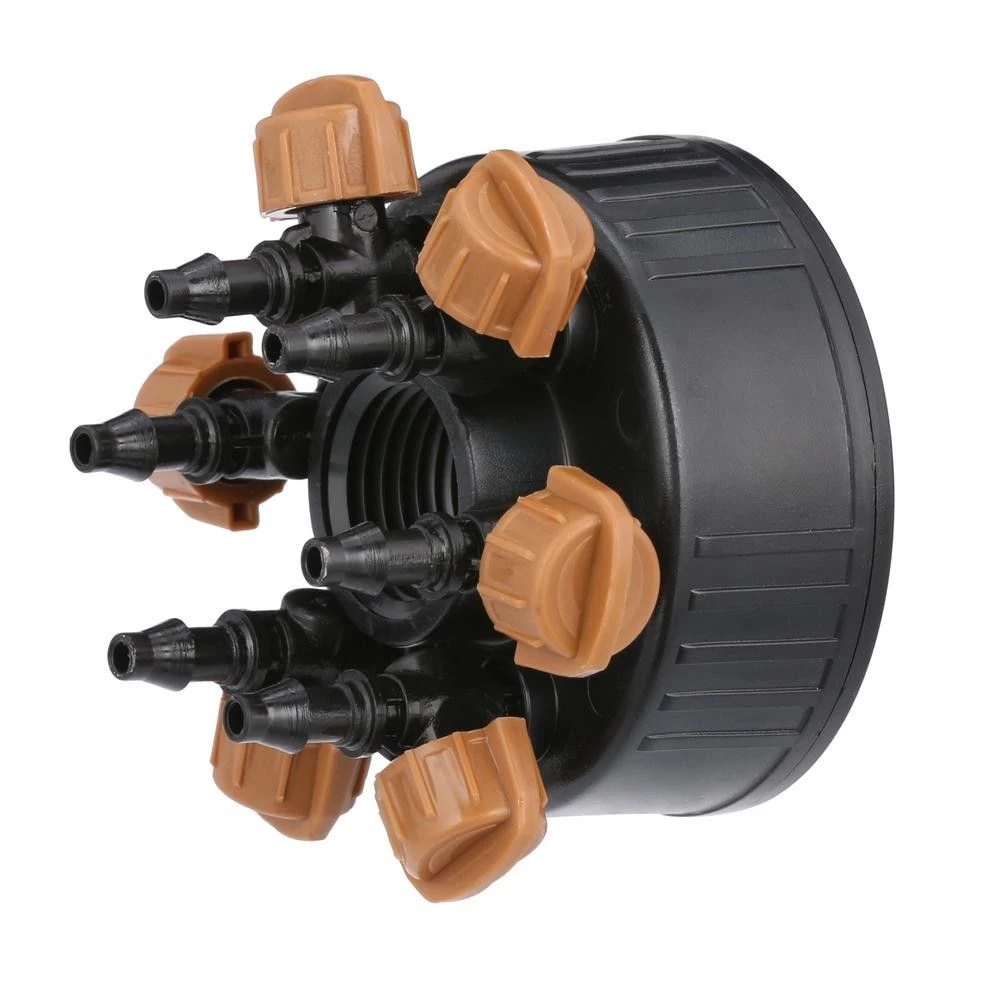

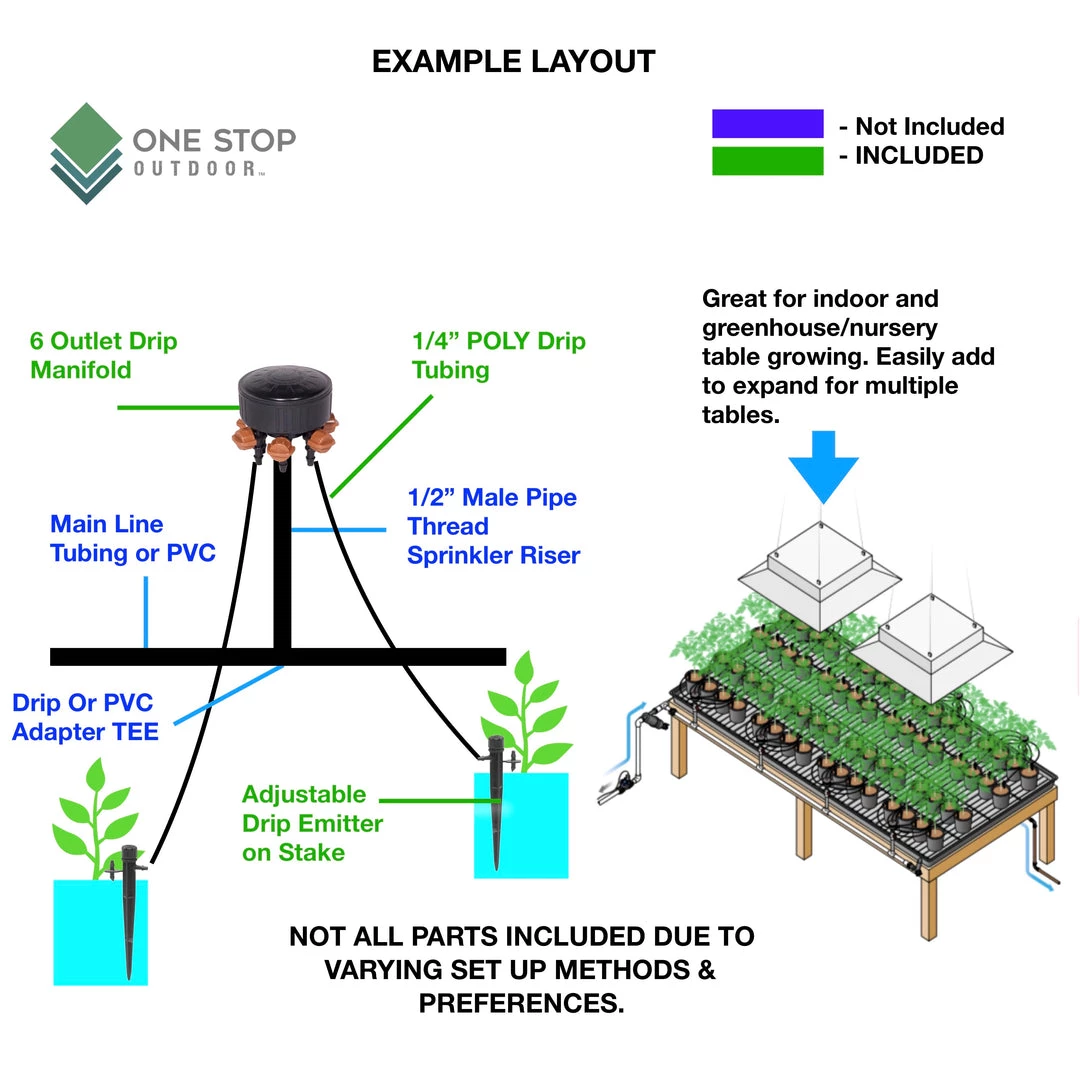

Adjustable Six-Outlet PC Drip Manifold (1/2″ female pipe thread) is used to retrofit an existing 1/2” sprinkler riser into a six-outlet drip irrigation system without altering or increasing the total flow of the sprinkler system zone. It has six independently adjustable, pressure compensating outlets with flow rates between 0 and 20 GPH at operating pressures of up to 50 PSI. The manifold’s six rotating 1/4” barbed outlets have flow control knobs which offer installation flexibility when the unit is incorporated into a new system or when replacing any of the sprinkler heads in a zone. Each outlet accepts 1/4″ micro tubing, 1/4” soaker hose or the addition of drip emitters and adjustable stakes to bring water to each plant root zone at a maximum flow of 20 GPH per outlet.——————————–

Operating pressure: 15-50 PSI Flow rate is adjustable between 0-20 GPH per each outlet Total flow rate: 120 GPH with valves completely open Inlet size: 1/2″ female pipe thread (FNPT) Temperature range: up to 122°F (50°C) Outlet size: 1/4″ barbed mini valve per each outlet Accepts 1/4” micro tubing with .150 to .170 ID and 1/4″ drip line Filter requirement: min. of 40 mesh Materials: Body and cover: high-impact plastic Barbed valve: high-impact plastic Diaphragm: EPDM
