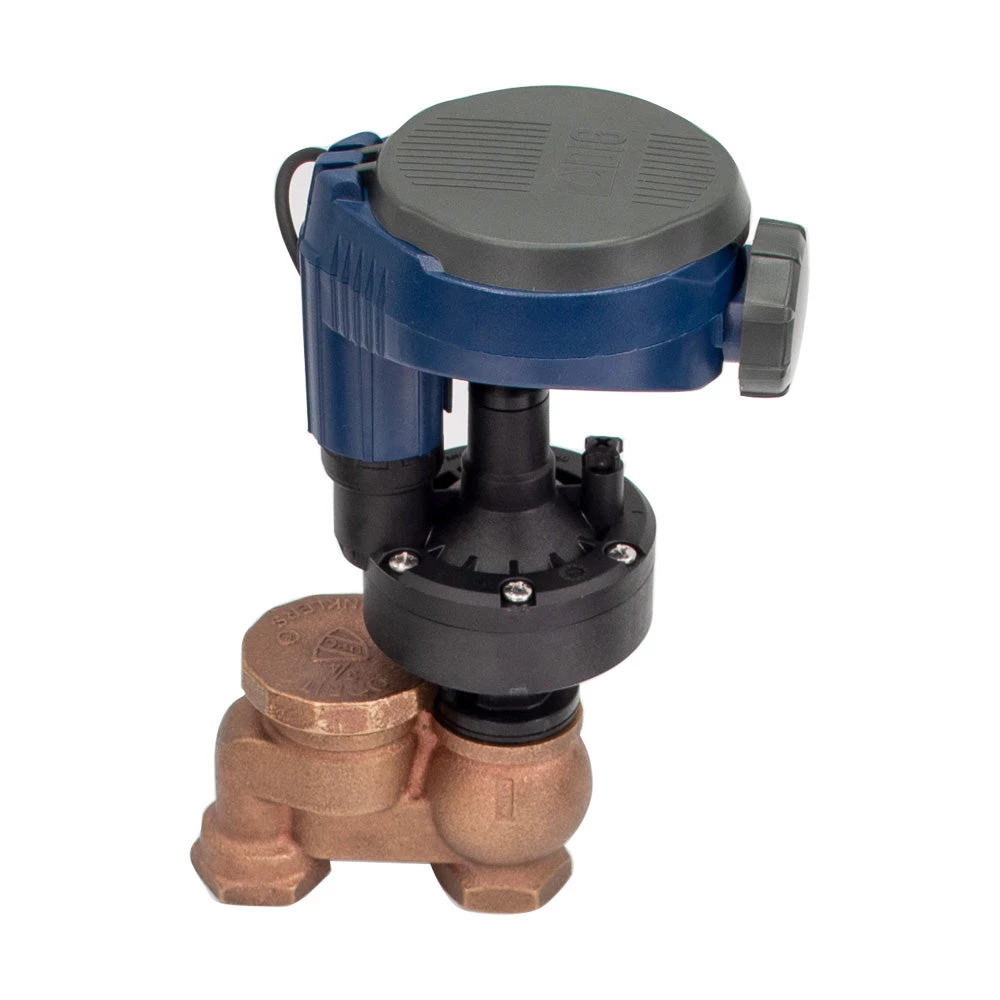

DIG 410BT-MVA Bluetooth Battery Operated Irrigation Controller With 3/4 Anti-Siphon Valve DRIP IRRIGATION

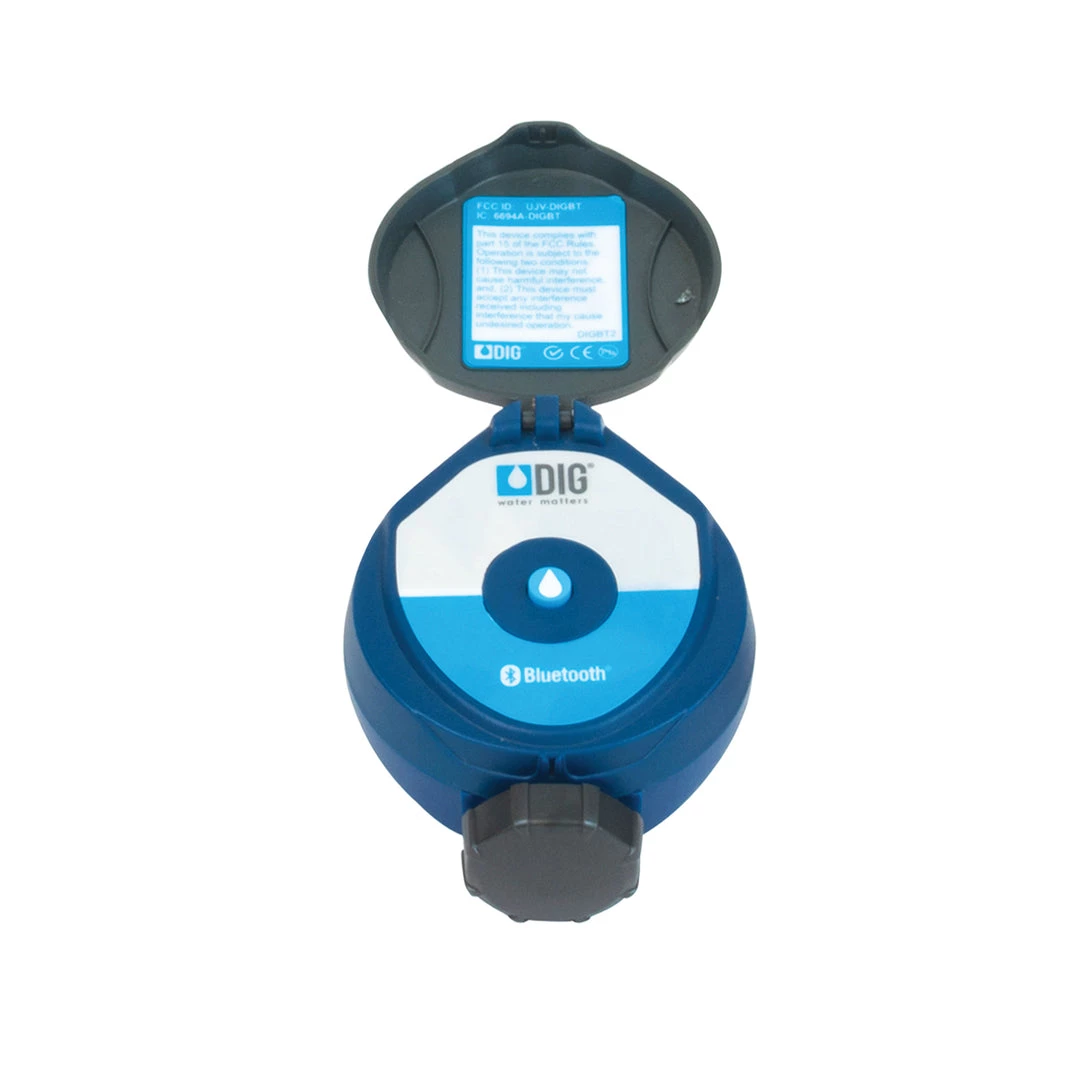

410BT Series Bluetooth® Battery Operated Controller

DIG’s 410BT Series Battery Operated Controller features Bluetooth® wireless technology combined with a full-function irrigation controller to provide long-lasting, reliable and feature-packed irrigation control via your smartphone or tablet. Download the free DIG BTT app to control any number of 410BT controllers through supported Android or iPhone smart devices from up to 50′ (15 meters), line of sight.
The 410BT controller’s rugged design is ideal for use in residential and commercial applications or where AC power is unavailable. It features a waterproof design (IP 68) and can operate for up to one year on two AA alkaline batteries.
The controller includes a single button for manual operation and 3/4″ through 2” professional grade inline valves with flow control.



Features:

• Download DIG’s BTT free app to your smartphone, then connect and control any number of DIG’s Bluetooth® controllers from the palm of your hand
• Operates with any supported Android or iPhone smart device
• Instantaneous communication with a smartphone
• Programmed entirely using accompanying smartphone app
• Customization through smartphone to name the controller or take a picture using the phone camera
• Password protection capabilities
• FCC and EC certified Bluetooth enabled
• see more



Specifications

• Type: DC (IP68)
• Connection and program mode: Android™ or iPhone® smartphone, Bluetooth®
• Controller power input: constant 11-volt
• Operation interface: one button for reset and manual run
• Power source: two AA alkaline batteries (not included)
• Solenoid with enclosed plunger: two-way magnetic latching, normally closed, 7-12 Volt DC with two wires
• Completely waterproof (IP68 certified) – can operate in harsh environments
• Solenoid wire: 8” (20 cm)
• Operating pressure: 10 to 150 PSI (.7 to 10.5 bar)
• Flow range: .1 to 160 GPM (.23 to 36 m3h)
• Temperature range: 38-130°F (3-54°C)
• Inlet and outlet: female pipe thread (FNPT) or British standard thread (BSP)
• Valve size: 3/4″, 1”, 1 1/2” and 2” FNPT heavy-duty globe valves with flow control
• Materials:
  • Controller housing: high-impact plastic
  • Inline valve and solenoid: glass reinforced nylon

Programming features via smartphone

• Graphical representation of programming schedule
• Weekly, Even/Odd days of the month, or 1- to 30-day schedules
• Five start times per day
• Program run time from 1 minute up to 11 hours and 59 minutes in 1-minute increments

Controller Setting

• View remaining battery life, connection strength, timer current watering status, and last watered information easily from the app
• System activation feature
• Rain delay option of up to 99 days with automatic restart for water conservation
• Budgeting by month of up to 200% in 5% increments
• Up to nine scheduled off dates per year (preventing the controller from operating on those specific days)
• Up to 12 months of irrigation run time history information in the palm of your hand
• Customization through your smartphone to name the controller
• Customization through your smartphone to assign a picture to a controller using the camera
• Password protection capabilities

Manual run

• Manual run with customization duration

Controller Scanning Screen

• View previous connection information of all timers previously connected to, if you have more than one
• Contact information to DIG
