DIG BC140 – Ocean Breeze Small Patio Mist Cooling Kit

Ocean BreezeTM Evaporative Mist Cooling System is ideal to cool the air around gazebos, patios, pools, campsites and gardens.

Includes:

misting nozzles qty.7 x .8GPH

1/4 in. misting line 50’ft length

additional components: 1 faucet connector,
1 screen, 15 “C” clamps, 1 line connector, 7 line tees and 1 line end



Specifications:

• Operating pressure: 40 to 80 PSI
• Fogger flow rate: .8 GPH @ 50 PSI
• Pipe length: 50 feet
• Pipe size: 1/4 inch
• Pipe color: beige
• Recommended operating pressure: 50 PSI
• Recommended spacing for best cooling effect: every 3 to 4 feet
• Recommended installation height: 8 to 12 feet above ground
• Covers up to 50 square feet, expandable up to 100 square feet
• Manufacturer ‘s warranty: one year limited warranty
• Material: UV protected

Features:

• Provides micro sized droplets to maximize the cooling and humidifying effect
• Water evaporates instantly; no muddy accumulation < li>
• Significantly reduced air temperature
• Enough line for a 50’ run to cover 50 square feet, easily expandable
• Contains ten .8-GPH foggers with barbs
• Easily expandable to up to 100 square feet using additional foggers and misting line pipe
• Made of nontoxic , UV-resistant, durable plastic material to protect the system from thermal degradation

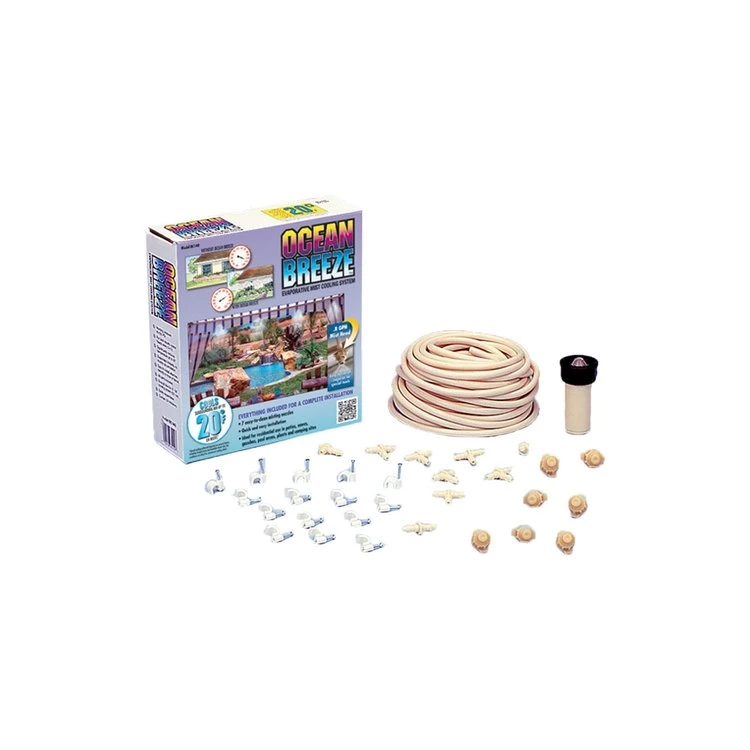

Kit Contents:

One 50′ ¼ inch misting line model MI006

• One 3/4 inch FHT faucet connector with screen washer model A001

• Ten 0.8 GPH misting nozzles with barb model MI001

• Fifteen 1/4 inch “C” clamps model MI026 (pack of 10)

• One 1/4 inch line connector model MI009 (pack of 5)

• Seven 1/4 inch barbed tee model MI007 (Pack of 5)

• One 1/4 inch line end/plug model MI008 (Strip of 10)

• Instruction manual

Application:

OCEAN BREEZE® Small Evaporative Mist Cooling Kit is used for cooling patios, pool sides, and gazebos, as well as greenhouses, nurseries, and outdoor work areas. With a low flow rate of .8 GPH and with micro sized droplets the cooling and humidifying effect can be maximized to give a drop of up to 20-degrees depending on outside temperature. The misting nozzle operating pressure ranges from 40 PSI to 80 PSI. Positioning the foggers 8 to 12 feet above the ground with 3 to 4 foot spacing will achieve the best cooling effect. The OCEAN BREEZE® cooling system is a complete kit that contains all the parts needed for installation.
