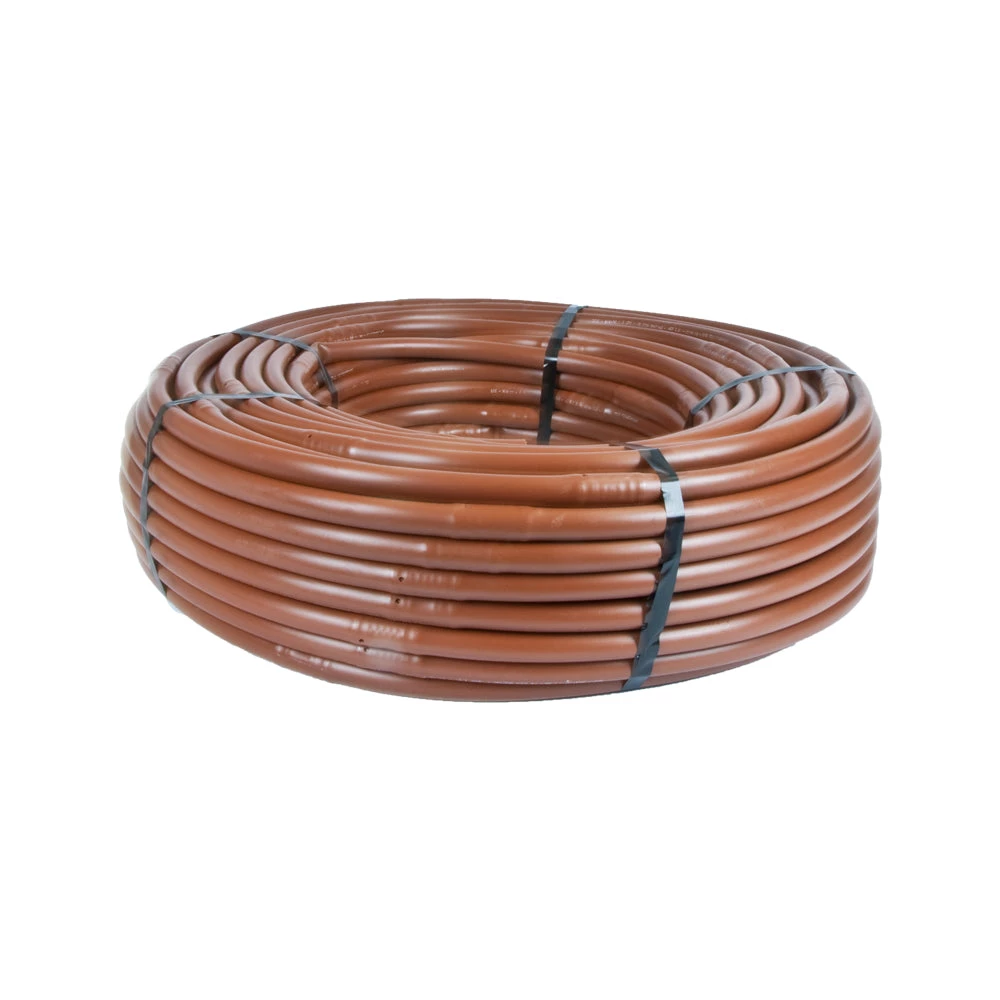

DIG DRIP IRRIGATION 17mm 1/2″ Inch (.670″ OD) Drip Emitter Tubing – 12″ Spacing .95GPH – Pressure Compensating (100ft’) – A1-112P

DIG 17mm Pressure Compensating Dripline 12″ Spacing .95 Gallon Per Hour (WITHOUT Check Valve) .670 OD

Excel PC Dripline

Excel PC pressure compensating (PC) dripline, flexible, durable and precise with all the features you look for in a dripline

Excel PC pressure compensating (PC) dripline is designed with floating diaphragms that regulate and maintain a consistent flow rate at variable inlet pressures in a wide range of demanding conditions.

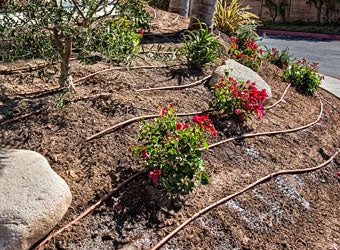

Excel™ Dripline’s exceptional characteristic of flow uniformity at a range of operating pressures presents many advantages in site preservation and system efficiency. Providing trouble free operation, long life and optimum plant growth for a sustainable and efficient irrigation system. Ideal for installation in oddly or narrowly shaped areas, parking lots, high traffic areas, green walls, green roofs and windy sites and difficult terrain such as on slopes



Features

• Flow uniformity regardless of operating pressure and variation along the line
• The drip emitter and the diaphragm are self-contained units that are molded into the interior wall of the tubing
• Turbulent flow through a large labyrinth water passage helps reduce clogging
• Each emitter is made of three individual sections including a cylindrical plastic housing with labyrinth water passage, a plastic receptacle and floating silicon diaphragm
• Resistant to chemicals and fertilizers commonly used in landscaping
• Flexible tubing for easy installation
• The dripline is marked with flow rate,size and date for easy identification
• Use with DIG 17 mm barb fittings .670 OD compression fittings and universal Nut Lock™

• Can be installed above or below grade
• Two flow rates to provide maximum flexibility in a variety of applications
• Flow regulated, self flushing in-line drip emitters deliver equal flow at a wide range of operating pressures

Specifications

• Flow rates:
  • .58 GPH (2.2 L/H) color code – yellow
  • .95 GPH (3.6 L/H) color code – white
• Operating pressure: 12-50 PSI (.8-3.5 BAR)
• Color code: black or brown
• Materials: low-density polyethylene resin with a minimum of 2% carbon black
• Sizes:
  • .570 ID x .670 OD (14.5 mm ID x 17 mm OD)
• Spacing: 12”, 18”, 24”, 30 and 36” (30.5 cm, 45.7 cm, 61 cm 76 cm and 91 cm)
• Lengths: 100’, 250’, 500’ and 1000’ coils
• (30 m, 75 m, 150 m and 300 m)
• Minimum bending radius: 1’ (.3 m)
• Filter requirement: minimum of 150 mesh
