DIG DRIP IRRIGATION Spray Jet Assembly *Spike Not Included (90-360* Degree) (50 Pack) – 07-023 – 07-024 – 07-025

Spray Jets

DIG’s Micro Sprayers are low flow with full, half, and quarter circle or strip pattern with flow rate of 13.4 gallons per hour at 25 PSI. The 110B, 111B, and 112B have a threaded barb are available om packs of 10, the 110-1B, 111-1B, 112-1B, 113-B are in single packs and assembled with 13” stake, 24” micro tubing with 1/4″ barb for installation flexibility. Producing a fine spray in a range of patterns, the micro sprayers can cover areas from 5.9’ radius to 19.8’ in full diameter, depending on spray pattern. The low precipitation rate micro sprayer can be used for most planting areas and are suggested when low flow overhead irrigation is desired or for an area where drip emitters or conventional sprinkler systems are not practical. These micro sprayers are assembled of two nonmoving parts and have no flow adjustment capability.



Features

• Low flow with fine spray pattern
• Color-coded spray caps signify various spray patterns for easy identification
• Removable cap for easy cleaning
• Constructed of UV-resistant, durable plastic material

• Available in 90°, 180°, 360°, and strip patterns and used for closely spaced plantings
• Recommended for flowerbeds, groundcovers, shrubs or for areas where low flow overhead irrigation is desired

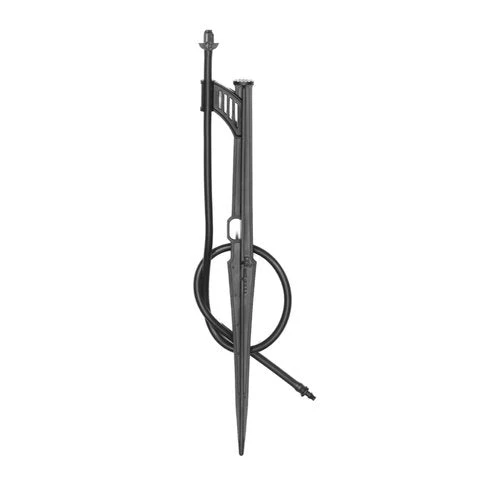

• Available completely assembled on 13″ spike with 24” (.160 ID x .270 OD) micro tubing and barb or threaded barb
• Two piece micro sprayer consisting of spray cap and threaded base for installation flexibility
• Efficient and reliable method to apply water

Product specifications

• Operating pressure range: 15 to 30 PSI
• Recommended operating pressure: 25 PSI (use with model D46 25-PSI pressure regulator)
• Flow rate: 13.4 GPH @ 25 PSI
• Filter requirement: minimum of 120 mesh
• Recommended micro sprayer spacing: 4′ to 8′ apart
• Micro tubing length & size: 24″ x 1/4″ with .160 ID x .270 OD
• Material
  • Stake: polypropylene
  • Micro sprinkler: high impact plastic
