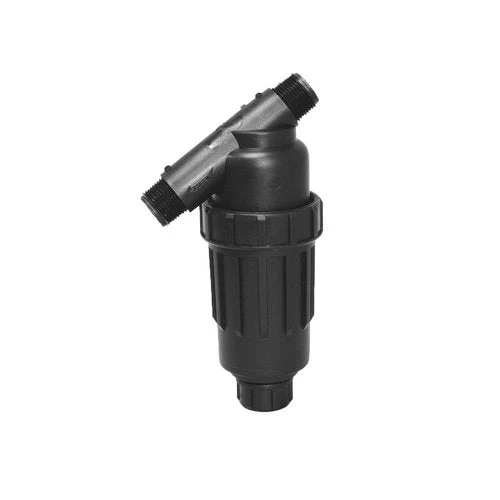

DIG FILTRATION 1″ MNPT XL Y Filter With Disc Elements P31-150D – P31-120D – P31-080D

1″ MNPT XL Filter With Disc Elements

Features

• The disc filter consists of body, cover and grooved discs cylinders, stacked on a plastic spine, forming a cylindrical filter element. The disks are compressed together inside the filter housing by a spring located at the bottom of the filter cover to provide three dimensional filtration
• Sediments accumulate on the outer face of the stacked discs, allowing clean water to flow through the stacked discs and out the middle of the filter
• The disc elements provide in-depth filtration to retain organic matter
• During operation the disc elements are tightly pressed together by pressure and the spring providing high filtration efficiency
• Discs have excellent resistance to most common chemicals
• Easy maintenance – the discs can be extracted for cleaning
• Interchangeable color coded discs and stainless steel screen elements provide a wide range of filtration degrees and options
• Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions

Specifications

• Flow rates: 3/4″ & 1″: up to 18 GPM (4 m3/h)
• Operating pressure: up to 120 PSI (8.4 BAR)
• Temperature range: up to 130°F (54°C)
• Inlet and outlet size: 3/4″ and 1″ MNPT

Filter and Disc Materials

• Housing and discs: polypropylene
• O-ring: EPDM
• Pressure testing ports: polypropylene
• Pressure testing seals: natural rubber BR
• Disc cylinder assembly: polypropylene / PBT
• Spring: stainless steel 304
