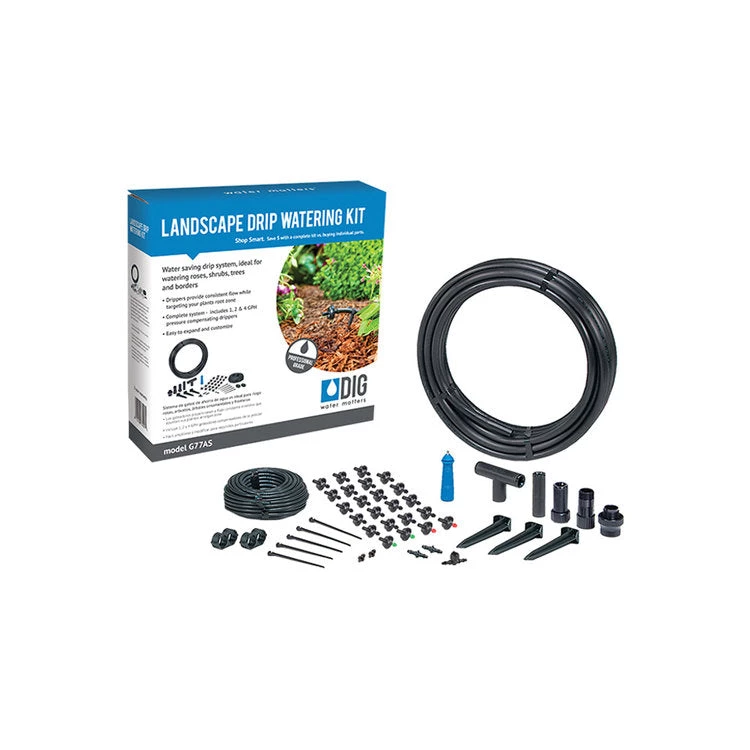

DIG G77AS – Landscape Drip Irrigation Kit (24 Plants)

The G77AS Drip Irrigation Kit is a complete kit for a garden planted with roses, vines, shrubs, groundcover, flowerbeds or trees. The kit has all the parts needed to start a system from a faucet or a garden hose, and cover up to 150 SF. It can be expanded to cover more than 400 SF using additional drip tubing and PC drip emitters with the same flow rate. The kit includes a 3/4″ backflow preventer, 3/4″ 25 PSI pressure regulator, 3/4″ swivel adapter, 50′ of DIG’s premium 1/2″ drip tubing with .600 ID x .700 OD, 50′ of 1/4″ micro tubing, a total of 24 PC drip emitters, including 20 1-GPH, two 2-GPH and two 4-GPH PC drip emitters, and all the necessary parts needed to complete the installation.



Specification:

 Operating pressure: 25 to 30 PSI (25 PSI pressure regulator included)

• Drip emitter flow rates: 1 (color black), 2 (color green) and 4 GPH (color red)

• Maximum recommended flow rate: 220 GPH (3.7 GPM)

• Drip tubing size and length: 50 feet of ½ inch with .600 ID x .700 OD

• Used with .700 OD (black) compression fittings

• Drip micro tubing (Vinyl) size and length: 50 feet of ¼ inch with .156 ID x .245 OD

• Total flow rate for this kit: 32 GPH (.53 GPM)

• Recommended drip spacing: minimum of 12 inches between the drip emitters or 1 to 2 drip emitters per plant

• Covers up to 150 square feet, expandable up to 400 square feet

• Manufacturer’s warranty: one year limited warranty

• Material: Protected for extra resistance to the damaging effects of ultraviolet rays



Contents:

1 A015 D45 backflow preventer 3/4 inch FHT x 3/4 inch MHT

1 A013 D46 3/4″ FHT 25 PSI pressure regulator

https://www.youtube.com/watch?v=Ztgy23EauAE1  LF003 C34 3/4″ FHT x .700 O.D. swivel adapter with screen

1 T004 B35 50’ coil of ½ inch of black drip tubing with .700 OD

1 LF005 C35 ½ inch compression tee with .700 OD

1 LF001 C33 ½ inch compression coupling with .700 OD

1 T009 B38 50′ feet of ¼ inch vinyl black micro tubing

20 D076 B221B 1-GPH PC drip emitters with barb, color black

2 D077 B222B 2-GPH PC drip emitters with barb, color green

2 D078 B224B 4-GPH PC drip emitters with barb, color red

1 A019 D44 small hole punch

1 A018 D33A ¼ inch barbed ball valve

3 S006 R60 5″ inch hold down stakes for ½ inch drip tubing

5 S005 P33B 4″ inch supporting stakes for drip emitters

2 SF001 H80A 1/4 inch barbed connectors

2 SF003 H82A 1/4 inch barbed tees

2 SF007 G79B goof plug

2 A006 F68B figure 8 hose end

1 instruction manual
