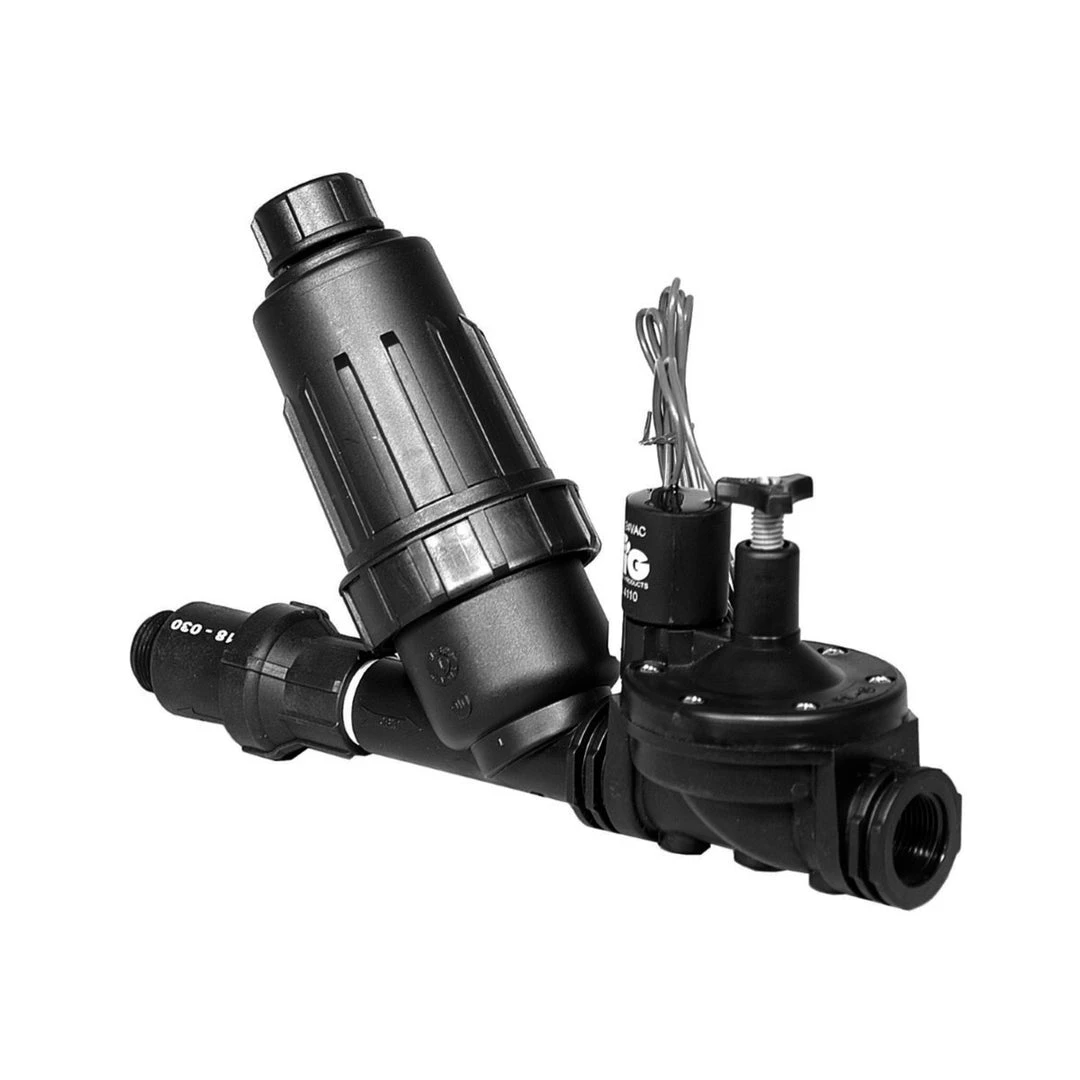

DIG P40-075 – 3/4″ 24VAC Valve Assembly FNPT X MNPT

3/4″ & 1″ AC & DC Drip Zone Assemblies

Features

• Available with 24 VAC, 7-12 DC, battery operated controller or LEMA 1600HE solenoid actuator and filter and pressure regulator
• Each drip zone is assembled with a slow opening and closing valve for better reliability of the system
• Flow control and manual bleed on the valve for ON/OFF operation
• Large filter screen provides greater filtration and operation efficiency
• Each drip zone is completely assembled for easy in-line maintenance
• Designed with ease of maintenance for small size enclosures
• Two models of pressure regulators (adjustable pressure or preset pressure regulation) for a wide range of pressure sets and flow rates
• Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions

Specifications

• Pressure range sets:
  • P39-075: 12-35 PSI (.8-2.5 BAR)
  • P40-075: 30 PSI (2 BAR)
  • P52-075: 30 PSI (2 BAR)
  • P53-075: 30 PSI (2 BAR)
  • P54-075: 30 PSI (2 BAR)
  • P55-100: 30 PSI (3 BAR)
• Flow rates: .1-12 GPM (.23-3.6 m3/h)
• Operating pressure: 10-120 PSI (.7-8.3 BAR)
• Temperature range: up to 130°F (54°C)
• Filtration area: 11 square inches (71 cm2)
• Inlet and outlet size with adjustable pressure regulator: 3/4″ FNPT
• Inlet and outlet size with preset pressure regulator:
• 3/4″ FNPT x MNPT
• Weight: 1.5 lbs (.68 kg)
• Materials:
  • Body: durable plastic
  • Spring: stainless steel 304

Dimensions

• 1.25″ L x 9″ H (28.5 cm L x 23 cm H)
