DRIP IRRIGATION Dig Retrofit Drip Head 0-20 GPH AD6 – One Stop Outdoor

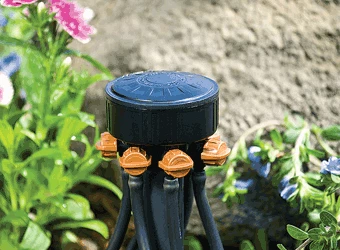

6-outlet Adjustable Drip Manifold

Converts an existing 1/2″ sprinkler riser to a 6-outlet, high flow, adjustable drip system; flow rate 0 to 20 GPH per zone. The 6-outlet drip manifold operates at any pressure between 15 to 50 PSI. It may be used with 1/4″ micro tubing, 1/4″ dripline or with individual drippers.

Features

• Swivel barbed outlets allow installation flexibility and protection of flow control
• Made of rugged materials to withstand adverse conditions
• Can be installed above or below grade in a 6″ (15 cm) emitter box
• Use with 1/4″ (.150 -.170 ID (4 mm ID) distribution tubing or with 1/4″ (4 mm) dripline

Specifications

• Flow rate is adjustable between 0-20 GPH (0-75 L/H) per each outlet
• Operating pressure: 15-50 PSI (3.5 BAR)
• Inlet size: female pipe thread (FNPT)
• Outlets size: 1/4″ barbed mini valve
• Accepts ¼” distribution tubing with .150 to .170 ID and 1/4 inch drip line
• Filter requirement: minimum of 40 mesh
• Materials:
  • Body and cover: high impact plastic
  • Barbed valve: high impact plastic
  • Diaphragm: EPDM ### Dimensions
• 2.25″ W x 1.5″ H (57 mm W x 38 mm H)
