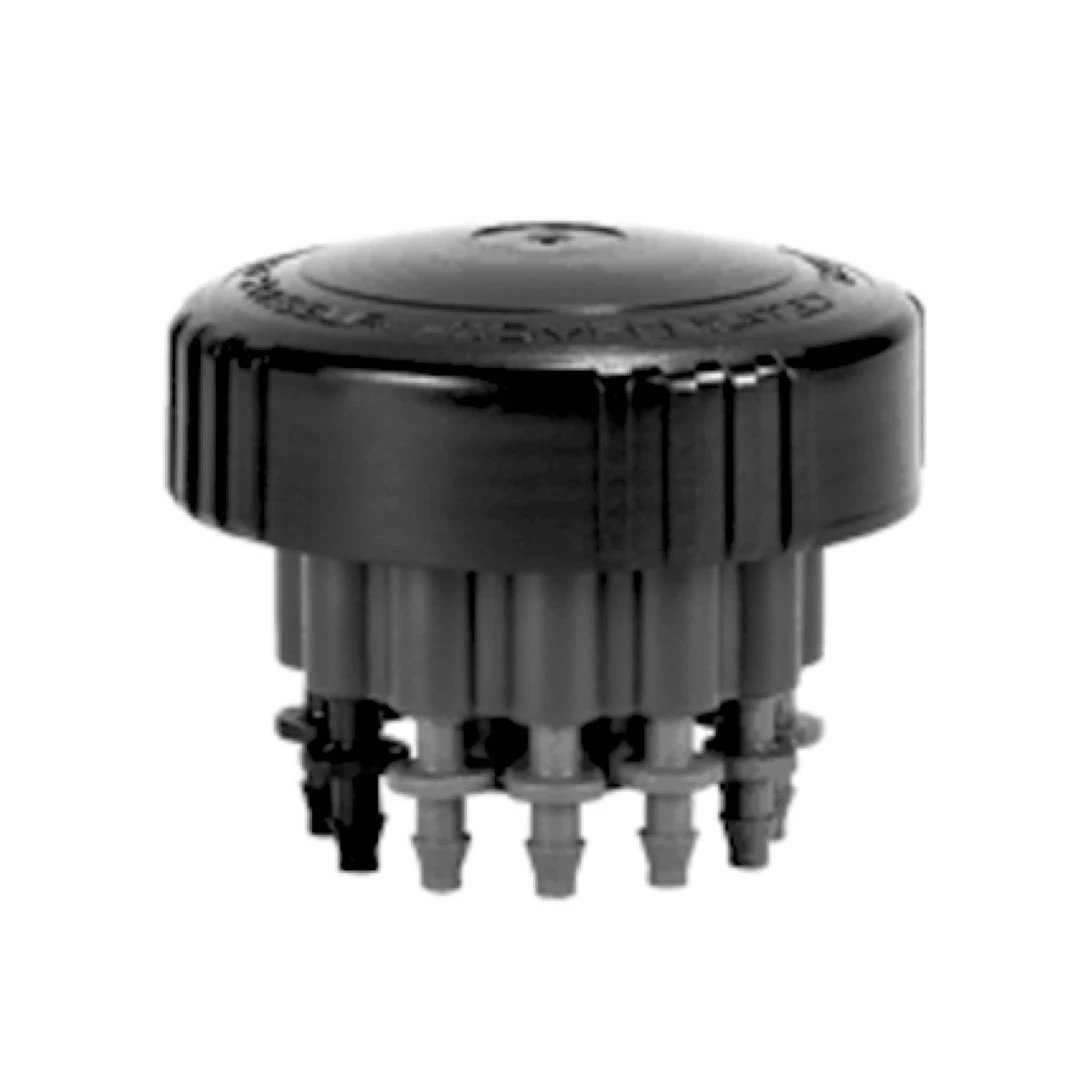

DRIP IRRIGATION DIG TOP-000 – 12 Outlet TOP Irrigation Bubbler Manifold Water Emitting Fits 1/4 Tubing

eThe TOP twelve outlet drip irrigation manifold head with ½ inch FPT utilizes extremely accurate pressure compensating individual and interchangeable drip emitters to ensure equal flow from each outlet over a wide range of operating pressures from 10 to 80 PSI.

 ***PLEASE NOTE: THIS INCLUDES ADAPTERS TO FIT 1/4” TUBING (.150 – .160 ID) IT WILL ALSO FIT 1/8″ TUBING WHEN USED WITHOUT ADAPTER BARBS.

***THIS MODEL IS THE BODY ONLY THERE IS NO FLOW REGULATION AT THE MANIFOLD.

Features

• Constructed with 12 built-in individually pressure compensating drip emitters
• Self-flushing emitters allow passage of water and minimize clogging
• Interchangeable drip emitters for variable flow rates in a single head
• Color-coded drip emitters and barbs easily identify flow rate at each zone
• Each drip emitter individually filtered (approx. 80 mesh)
• Backup mini-disk filter
• Rugged materials to withstand the most adverse conditions

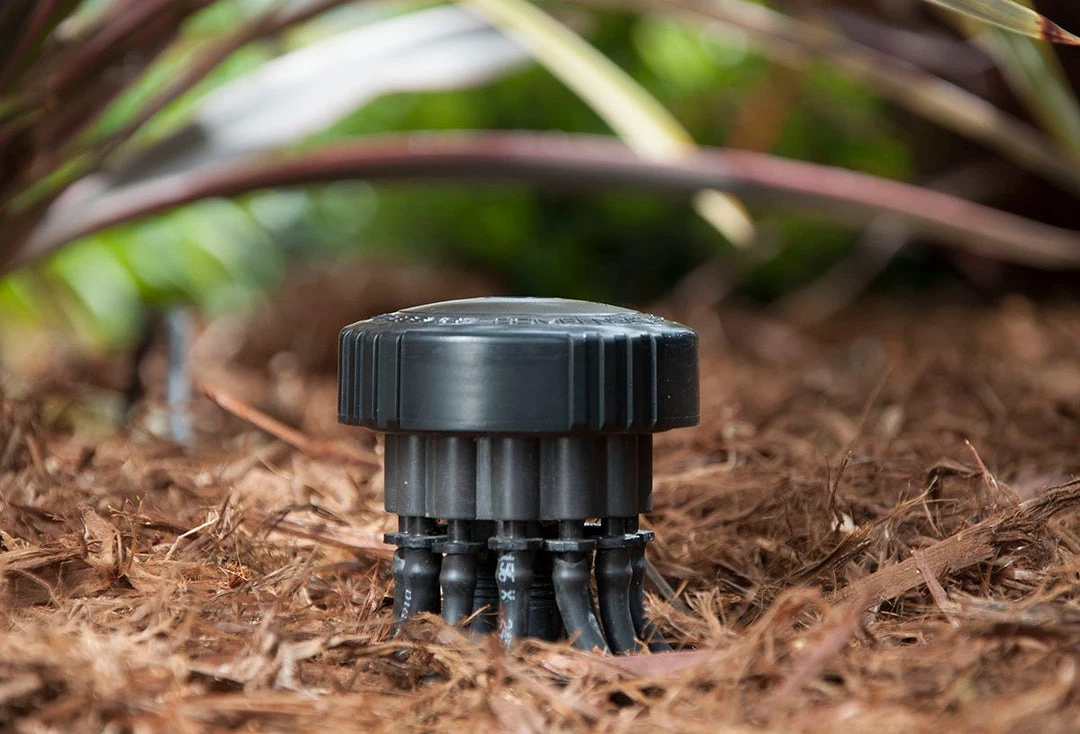

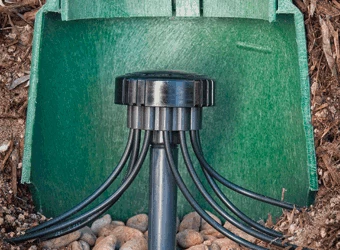

• Install above grade or place below grade in a 6” emitter box
• Inlet plugs provide the option to cap off up to eight drip emitters
• TOP kits contain 100’ of 1/8” distribution tubing, accessories, stakes and 1/4” converter barbs allowing the use of 1/4” distribution tubing

Specifications

• Available Flow rates: .6, 1, 2.2 and 3.3 GPH (2.2, 4, 8.3 and 12.5 L/H)
• Pressure compensating range: 8-80 PSI (.5 – 5.6 BAR)
• Recommended operating pressure: 15-50 PSI (1 – 3 BAR)
• Inlet size: 1/2” FNPT
• Use with 1/8” (.187 OD) or 1/4” (.150 – .160 ID) distribution tubing
• Materials:
• Body and cover: high impact plastic
• Filter: nylon
• Diaphragm: silicon
• Filter requirement: minimum of 120 mesh

Dimensions

Dimensions: 3” W x 2” H (7.6 cm W x 5 cm H)
