HPC – Hearth 80PKNQM SAFETY PILOT KIT-QUICK MOUNT Safety Pilot Kit With New “Quick Mount” System, Includes A 300 Degree Rear Inlet INDOOR FIRE

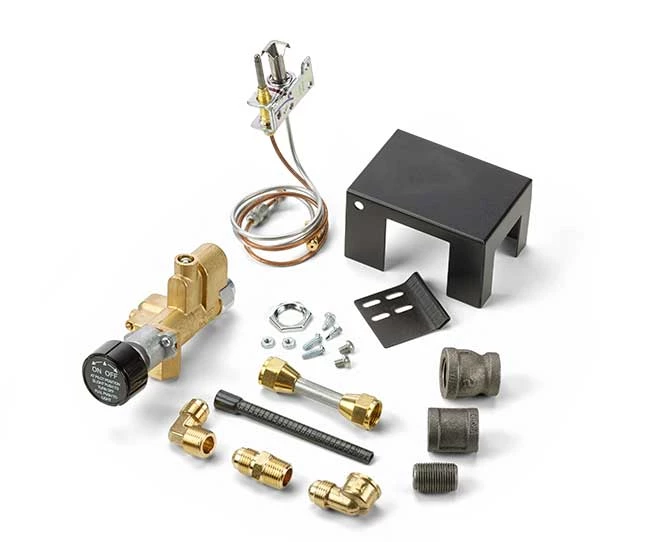

Kit includes:

Copreci Safety Pilot Valve (#109-C): Rear Gas Inlet, 90k

Btu, 300° Rating.

18” Pilot Assembly with mounting bracket.

3” Swivel Flare Connector for easy valve / burner

connection.

Heat Shield for valve.

Black control knob with 4” stem extension.

Assorted fittings for various burner threads



“Quick Mount” swivel flair connector system. Uses 300°

rear inlet Copreci Valve. All fittings for mounting to all

“standard” type burner pans. Designed to fit burners

having 3/8” female, 3/8” male or 1/2” male threads on

burner tube, 90k Btu. For LP applications use 70LPK-QM

conversion kit.
