HPC Hearth H2Onfire 360 – Black Fire Water Insert, Fire Pit & Waterfall Bowl W/ Electronic Ignition OUTDOOR FIRE

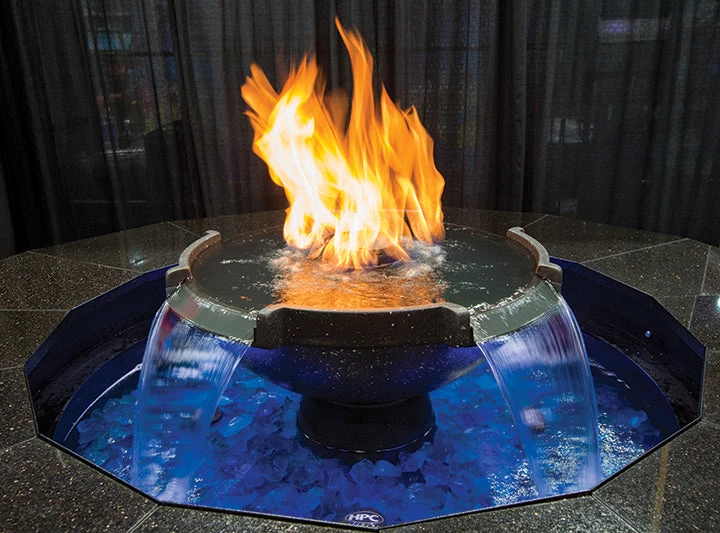

Fire / Water Bowls provide an outdoor retreat of warmth and ambiance. Each bowl has been hand-crafted using our custom finishing process, guaranteeing a one-of-a-kind creation with subtle variation. Enjoy the beauty of fire and water together!

FOW52R-MONACO4BL-EI-NG
H20nfire
A true electronic Fire On Water, turn-key appliance operating at a gas pressure of only 1/2 psi, allowing for residential installations. Certified to the Z21.97 standard .- Beautiful blue LED lights to illuminate water – hidden under
scupper.
– Auto fill system- automatically adds water when needed; Low level sensor protects pump if water supply issue.
– Filtration- water is conditioned with a reusable, easy-to-clean filter.
– Water pump- 3,200 gallons per hour (up to 6,000gph pumps
available upon request)
– Leveling / Height Setting- four heavy, 3/4″ threaded feet give flexibility of height adjustment and leveling. Easily adjusted on site with ~4″ of travel.
– Overflow feature allows water to escape safely.
– Electrical Connection- simply with a 5-lead, 20’ cable ready to connect. Control Panel incorporates 3 push-to-reset breakers for water, LEDs & fire.

BASIN DIMENSIONS
Outside Diameter: 52″
Height: 14″-18″ with Adjustable Side Wall Height
Tower: 10″ Diameter Flange to Mount Centerpiece
BASIN WEIGHT
Copper Fire Bowl: 125 lbs Dry, 532 lbs Wet
Water Basin Only: 82 lbs Dry, 460 lbs Wet
Additional Load
Basin floor: 200 lbs max
Tower 100 lbs max

Softened tap water only – Minor conditioning needed.
Capacity: Unit holds 50 Gallons (less with Water Rock)
Water Pump: 3,200gph Standard (higher rates available)
POWER: 120VAC – Control via panel or from remote location.

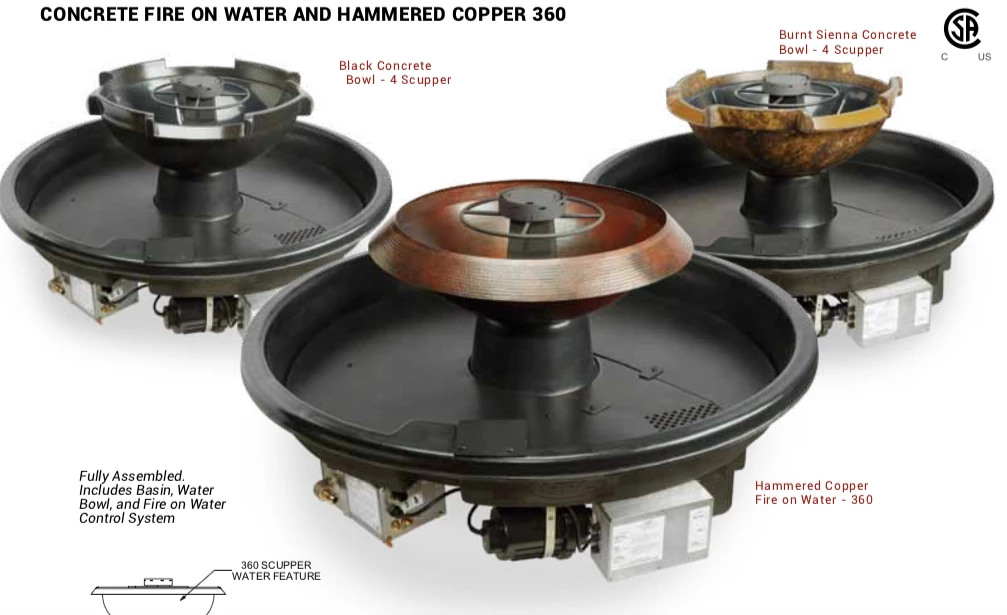

Monaco Series Concrete Water Bowl, Black Color, 4 Scupper
65k BTU Electronic Igition System – FOR Natural Gas & 120VAC USE ONLY

Optional Remote Control Available ( 578-G4 )
74″ O.D. Aluminum Optional Enclosure Available ( WPE-72ROUND-TB/CV )
