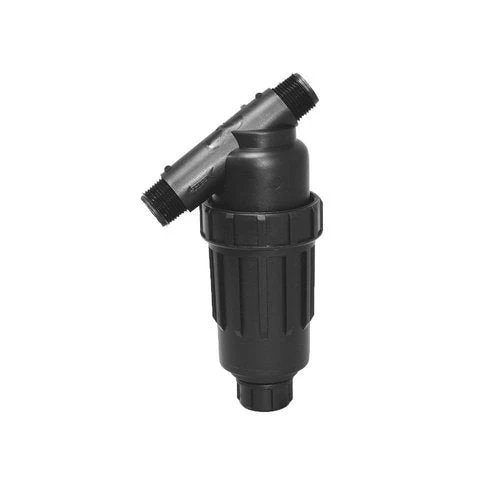

DIG 3/4″ MNPT Drip Irrigation Y Filter With Polyester Screen & Flush Cap (40-200 Mesh)

3/4″ MNPT Thread XL Filter With Polyester Screen & 3/4″ FHT Flush Cap (40-200 Mesh)

Mesh screen filter removes dirt and particles from the irrigation system and protects the small orifices of the drippers and micro sprinklers from clogging.



Specifications

• Flow rates: up to 18 GPM (4 m3/h)
• Operating pressure: up to 120 PSI (8.4 BAR)
• Temperature range: up to 130°F (54°C)
• Stainless steel and polyester screens from 80 to 200 mesh
• Inlet and outlet size:
  • 3/4″ or 1″ MNPT with 3/4″ FHT cap
  • 3/4″ or 1″ MNPT with 3/4″ FHT flush valve
• Materials:
  • Housing: polypropylene
  • O-ring: EPDM
  • Pressure testing port: polypropylene
  • Pressure testing seals: natural rubber BR
