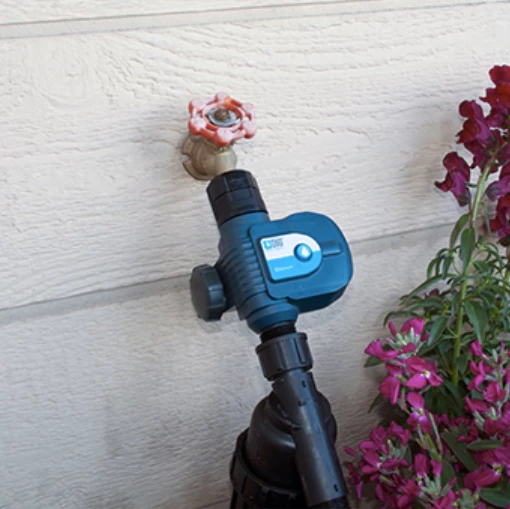

DIG BOHE-BT Battery Powered Bluetooth Hose End Timer With 3/4″ FHT X 3/4″ MHT

BOHE-BT Bluetooth® Hose End Timer

DIG’s BOHE-BT Bluetooth Hose End Timer (tap timer) features Bluetooth Low Energy wireless technology combined with a full-function, waterproof timer to provide long-lasting, reliable irrigation control via your smartphone or tablet. Download DIG’s free DIG BTT app to control any number of DIG Bluetooth hose end timers and controllers through supported Android or iPhone smart devices from up to 50 feet (15 meters), line of sight.

The timer’s rugged and waterproof (IP 64) design is ideal for use in residential home garden applications or where AC power is unavailable. It can operate for up to one year on two AA alkaline batteries.



Features

• Operates with any supported Android or iPhone smart device
• Instantaneous communication with smartphone once connected
• Programmed entirely using accompanying smartphone app
• FCC and EC certified Bluetooth enabled
• see more



Specifications:

• Type: DC latch
• Waterproof: IP64 certified
• Connection and program mode: Android or iPhone smartphone, Bluetooth®
• Controller power input: constant 11-volt
• Operation interface: one button for reset and manual run
• Power source: two AA alkaline batteries (not included)
• Solenoid with enclosed plunger: two-way magnetic latching, normally closed, 7-12 Volt DC with two wire
• Operating pressure: 10 to 120 PSI (.7 to 8.3 bar)
• Flow range: up to 14.2 GPM (up to 53 L/H)
• Temperature range: 38-130°F (3-54°C)
• Inlet and outlet: female hose thread (FHT x MHT) or British standard thread (FBSP X MBSP)
• Materials:
  • Timer housing: high-impact plastic
  • Inline valve and solenoid: glass reinforced nylon
• Weight without the box: .430 lb
• Dimensions: 5.5” Height X 4.3” Width X 3.125” Depth
• Weight with the box: .530 lb
• Dimensions: 5.125” Height X 4.37” Width X 2.875” Depth

Programming features via smartphone

• Graphical representation of programming schedule
• Weekly, Even/Odd days of the month, or 1 to 30-day schedules
• Five start times per day
• Program run time from 1 minute up to 11 hours and 59 minutes in 1-minute increments

Hose End Timer Setting

• View remaining battery life, connection strength, timer current watering status, and last watered information easily from the app
• System activation feature
• Rain delay option of up to 99 days with automatic restart for water conservation
• Budgeting by month of up to 200% in 5% increments
• Up to nine scheduled off dates per year (preventing the controller from operating on those specific days)
• Up to 12 months of irrigation run time history information in the palm of your hand
• Customization through smartphone to name the controller
• Customization through the smartphone Assigning a picture to a controller using the camera
• Password protection capabilities

Manual run

• Manual run with customization duration

Controller Scanning Screen

• View previous connection information of all timers previously connected to, if you have more than one
• Contact information to DIG
