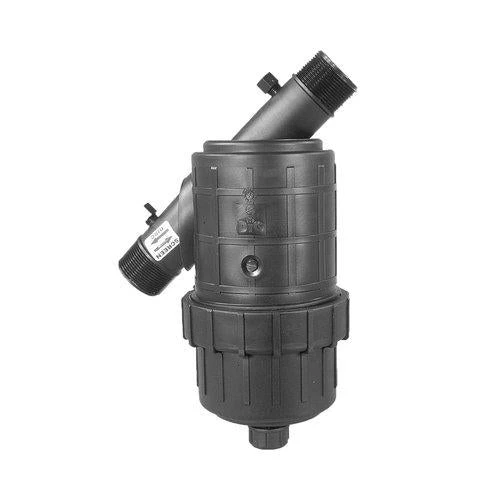

DIG MNPT Y Filter With Flush Cap & Stainless Steel Screen (80-200 Mesh) DRIP IRRIGATION

1 – 1/2″ MNPT Long Screen Filters With 3/4″ Flush Cap & Stainless Steel Screen (80-200 Mesh)

Mesh screen filter removes dirt and particles from the irrigation system and protects the small orifices of the drippers and micro sprinklers from clogging.



Features

• Large filter area and low friction loss allows long intervals between cleaning
• All-purpose filter with a wide range of stainless steel screens from 80 to 180 microns to suit a wide range of filtration requirements
• Designed to reduce operating costs and deliver high quality filtrate in a minimum space
• Screens have excellent resistance to most common chemicals
• Easy maintenance – the screen can be extracted from the filter for cleaning
• Interchangeable screen and disc elements
• Access point on the inlet and outlet side for pressure measurement test
• Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions

Filter Materials

• Housing: polypropylene
• O-ring: EPDM
• Pressure testing port: polypropylene
• Pressure testing seals: natural rubber BR How

Specifications

• Flow rates: up to 80 GPM (18.1 m3/h)
• Operating pressure: up to 120 PSI (8.4 BAR)
• Temperature range: up to 130°F (54°C)
• Stainless steel screens from 80 to 200 mesh
• Inlet and outlet size: 1 1/2″ and 2″ MNPT
