EVO 100 Waterproof Solar Powered Digital Hose End Watering Timer (tap Timer) GROWERS’ FAVORITES

The EVO 100I is a Hose End Tap Timer with a ¾” female thread inlet and male thread outlet. Power is derived via a patented, time-tested, internal photovoltaic module and microelectronic energy management system that is fueled by the surrounding ambient light (solar). After being charged, this efficient energy system provides enough power for the timer to function at any time, night or day, and in any weather with no direct sunlight required. This energy system also makes the EVO 100 environmentally friendly, functioning only on clean, renewable solar power without the need for a backup battery or AC power.

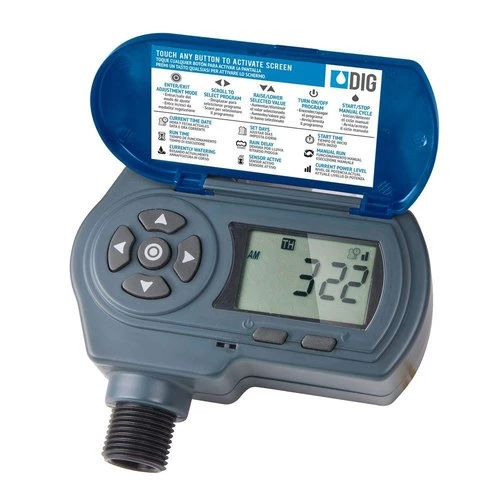

The EVO 100 features a large, easy-to-read LCD screen and simple, icon-based programming with weekly or cyclical programs, four start times per day, durations of up to six hours, program delay of up to 99 days, system off, manual operation, and a sensor wire connection to accept a rain sensor.



Features:

• Powered by a patented time-tested, internal photovoltaic module and microelectronic energy management system fueled by ambient light (solar)
• Easy to install and program
• Watering flexibility with a selection of watering frequencies and four start times per day
• Seven buttons and an integrated large, high resolution screen
• Easy to read LCD display with an AM/PM clock and icon-based programming for easy navigation
• Blinking notification on days the hose end timer is active

• 12 or 24-hour time format
• Non-volatile memory retains program integrity (excluding time)
• Manual irrigation cycle can be performed via the manual program button
• Quick release faucet swivel adapter for easy programming, installation and removal.
• One button program off for easy irrigation suspension
• Energy conservation feature automatically turns the hose end timer screen off after fifteen minutes
• Power level meter indicates the approximate charge (energy available)
• Semi-automatic, automatic, or manual operation
• High flow diaphragm valve with DC solenoid available in 3/4″ FHT inlet with screen and MHT outlet, or BSP thread
• Easy rain sensor installation through external wire
• Waterproof construction ensures reliable operation in harsh environments
• Environmentally friendly and energy independent; utilizes RoHS compliant components
• Three year warranty



Product Specification:

• Operating pressure: 10 to 100 PSI (.7 to 6.8 bar)
• Flow range: .1 to 8 GPM (.38 to 30 L/H)
• Temperature range: 38-130°F (3-54°C)
• Connection: female hose thread inlet (FHT) x male hose thread outlet (MHT) or British standard thread for tap (BSP)
• Power source: ambient light (solar)
• Sensor connection: yellow wire for closed contact rain sensor
• Power source: Ambient light (PVM)
• Input: 3,000 – 100,000+ LUX
• Sensor connection: yellow wire for closed contact sensor
• Controller dimensions: 5.75” W x 6.76” H x 2.25” D (14.6 cm W x 17.1 cm H x 6.3 cm D)
• Unit Weight including plastic clam shell packaging: 1.02 pounds (.47 kg)
• UPC code: 840620100038
• Materials:
  • Timer housing: high impact plastic
  • Inlet valve and solenoid: glass reinforced nylon with stainless steel plunger and spring ###Programming options
• Watering duration: 1 minute up to 5 hours and 59 minutes set in one minute increments
• Watering frequency: weekly or cyclical schedule with odd days, even days, or intervals from one to thirty (1- 30) days utilizing 365 day yearly calendar with leap year.
  • In the weekly schedule, the hose end timer (tap timer) can be programmed to operate on any day of the week, such as Monday, Wednesday, and Friday.
  • In the cyclical schedule, the hose end timer can be programmed to operate on odd days, even days, or at specific intervals such as every three days.
• Up to four start times per day in weekly or cyclical schedule provides added flexibility for any type of watering application.
• Rain off/delay option with automatic restart up to 99 days
• Program off option stops program until reactivated
• Manual cycle via the program with automatic shutoff option
