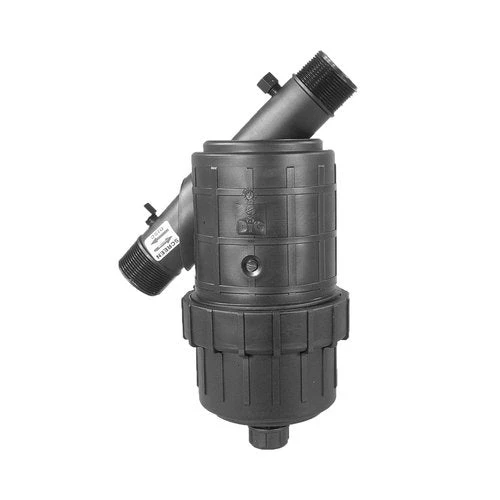

DIG FILTRATION 1-1/2″ Plastic Greenhouse Irrigation Disc Y Filter Long With Disc Elements

1-1/2″ Plastic Disc Filter Long With Disc Elements

Features

• Sediments accumulate on the outer face of the stacked discs, allowing clean water to flow through the stacked discs and out the middle of the filter
• Disc elements provide in-depth filtration to retain organic matter
• During operation the disc elements are tightly pressed together by pressure and the spring providing high filtration efficiency
• Discs have excellent resistance to most common chemicals
• Easy maintenance – the discs can be extracted for cleaning
• Interchangeable color coded discs and stainless steel screen elements provide a wide range of filtration degrees and options
• Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions

Specifications

• Flow rates: 1 1/2″ & 2″: up to 60 GPM (13.6 m3/h)
• Operating pressure: up to 120 PSI (8.4 BAR)
• Temperature range: up to 130°F (54°C)
• Inlet and outlet size: 1 1/2″, 2″ MNPT

Filter and Disc Materials

• Housing and discs: polypropylene
• O-ring: EPDM
• Pressure testing ports: polypropylene
• Pressure testing seals: natural rubber BR
• Disc cylinder assembly: polypropylene / PBT
• Spring: stainless steel 304
