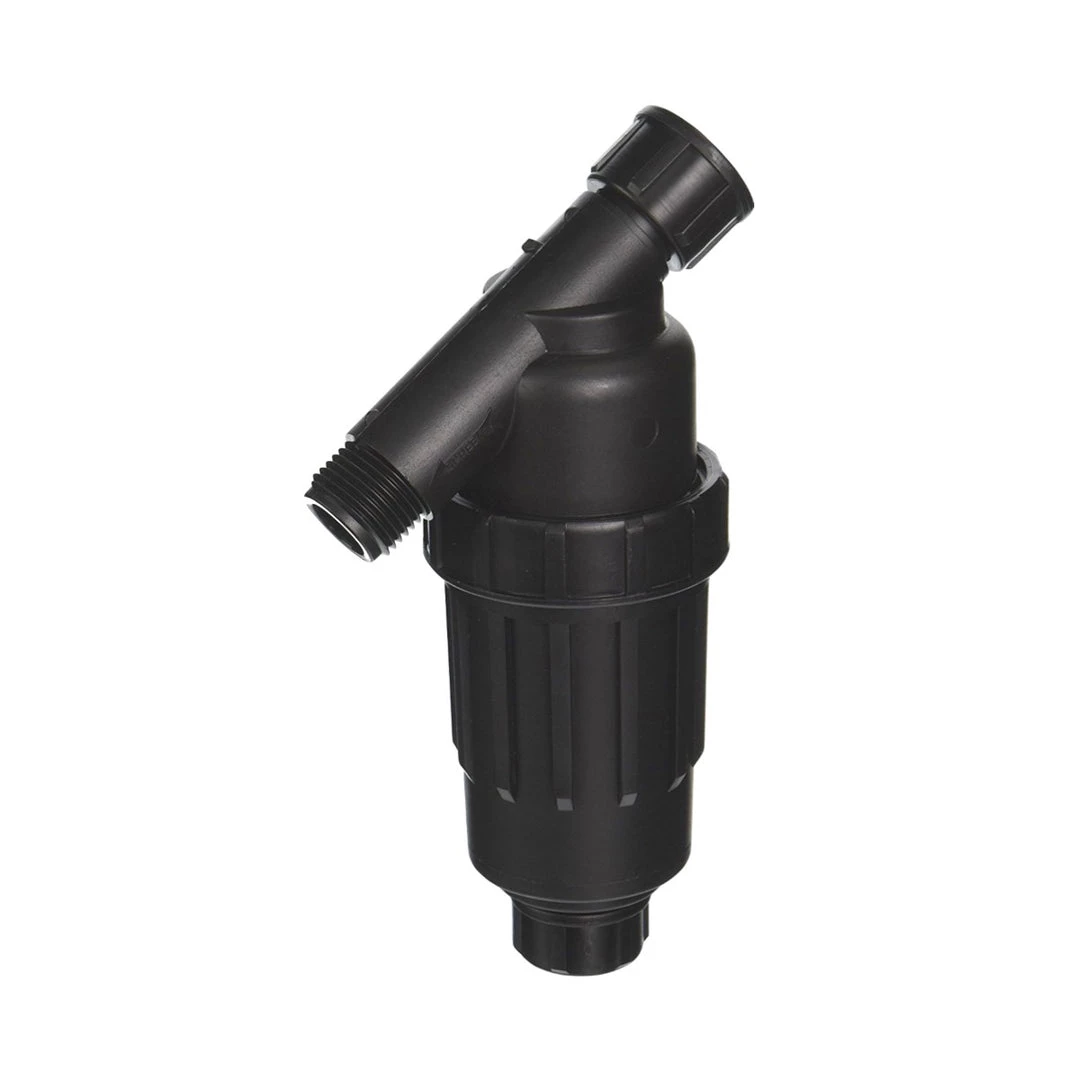

DIG 3/4″ Swivel FHT-MHT Drip Irrigation Y Filter With Polyester Screen & Flush Cap (155 Or 200 Mesh)

3/4″ Swivel Female-Male Thread Filter With Polyester Screen/Flush Cap (155-200 Mesh)

Mesh screen filter removes dirt and particles from the irrigation system and protects the small orifices of the drippers and micro sprinklers from clogging.



Features

• All-purpose filter with a wide range of polyester and stainless steel screens from 80 to 400 micron to suit a wide range of filtration requirements
• Screens have excellent resistance to most common chemicals
• Color-coded replacement screens for easy identification
• Large filter area and low friction loss allows long intervals between cleaning
• Available with flush cap or flush valve for easy flushing of particles trapped in the bottom of filter.
• Recommended to be installed and used after the control valve.
• Easy maintenance – the screen can be extracted from the filter for easy cleaning
• Interchangeable screen and disc elements
• Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions

Specifications

• Flow rates: up to 18 GPM (4 m3/h)
• Operating pressure: up to 120 PSI (8.4 BAR)
• Temperature range: up to 130°F (54°C)
• Stainless steel and polyester screens from 80 to 200 mesh
• Inlet and outlet size: 3/4″ FHT x MHT and 3/4″ or 1″ MNPT
• Materials:
  • Housing: polypropylene
  • O-ring: EPDM
  • Pressure testing port: polypropylene
  • Pressure testing seals: natural rubber BR
